titanium electric bicycle frame with bafang g510/ m620 motor

{{ product.price_format }}
{{ product.origin_price_format }}
Quantity:
Article No: {{ product.article_no }}
Material: {{ product.material }}
Face: {{ product.face }}
Size: {{ product.size }}
Capacity: {{ product.capacity }}
Weight: {{ product.weight }}
Attention:{{ product.attention }}
Function Dec:{{ product.function }}

{{ variable.name }}

{{ value.name }}

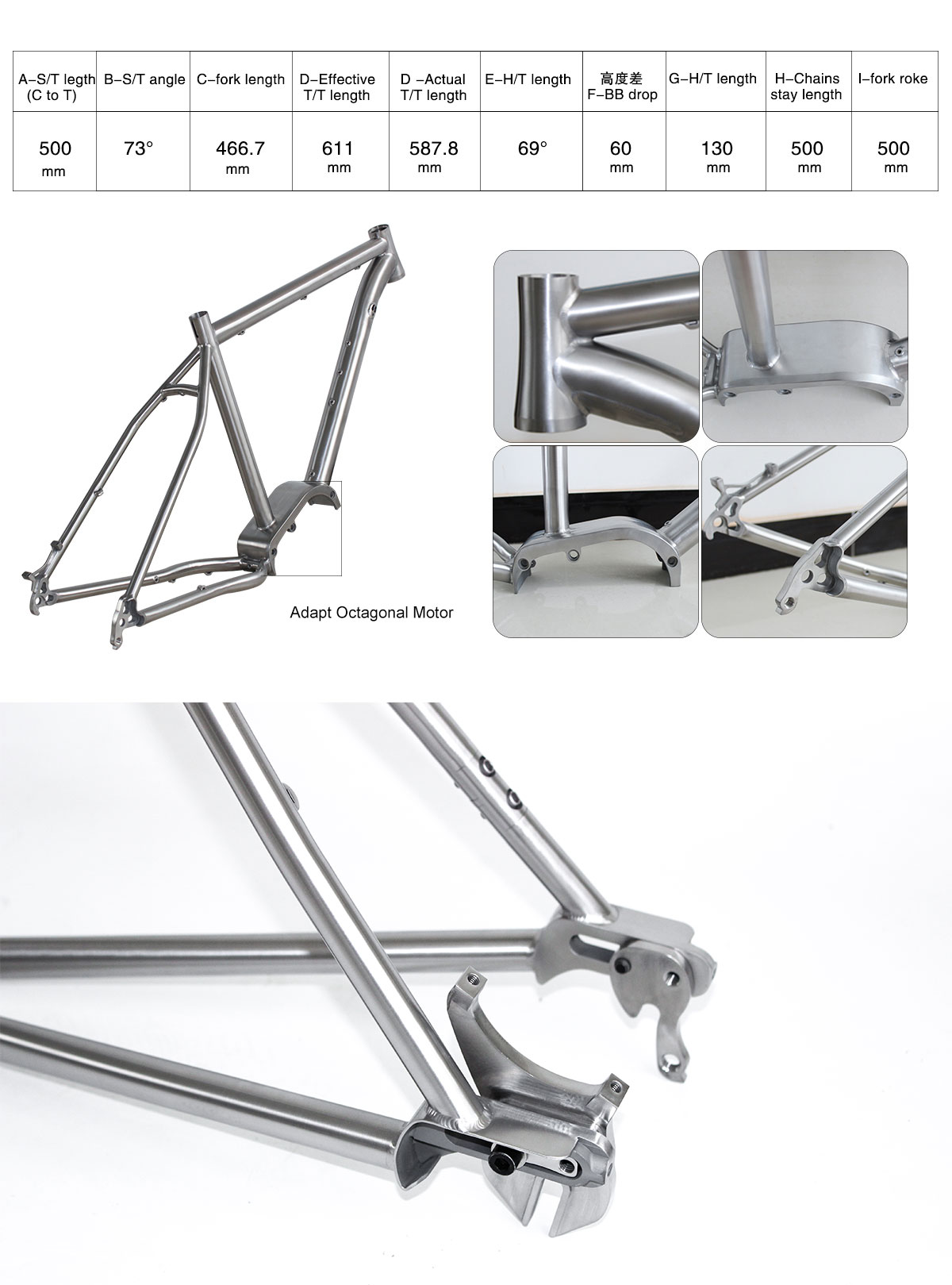

Specifications for : Titanium E Bike Frame with Bafang G510 m600 motor

Product name
titanium E bike frame with belt drive, Electrica e-bike

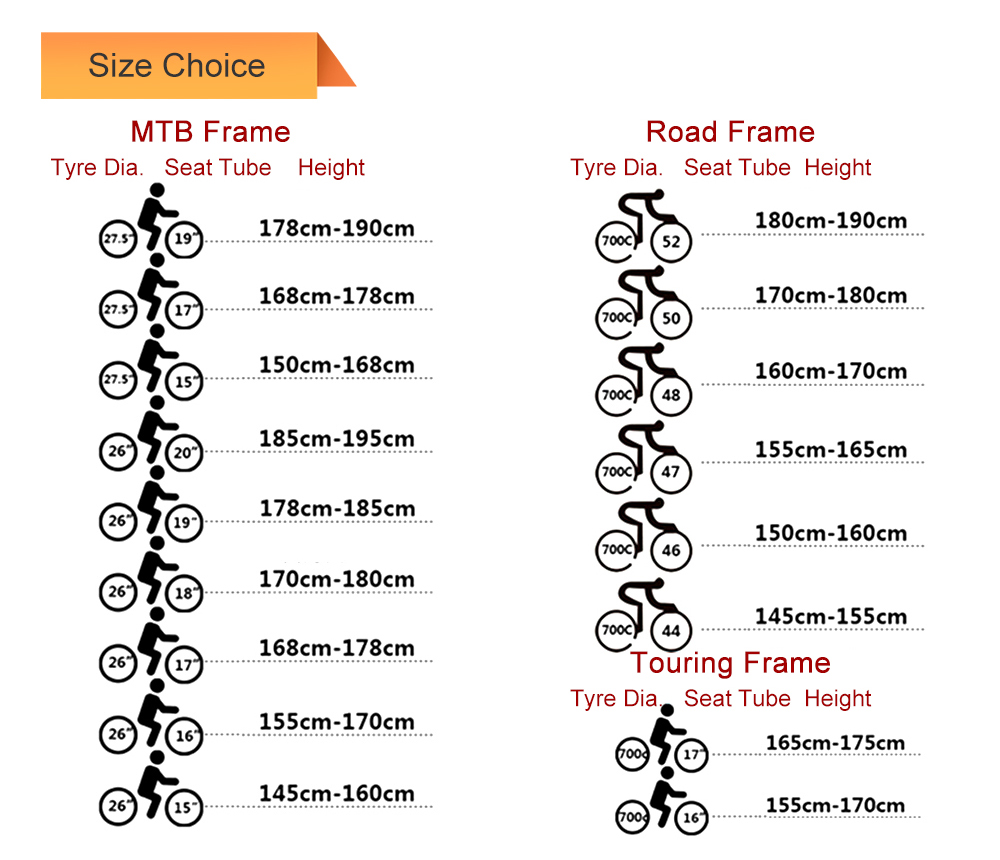

Size
19 inch or Customized Size    IS and PM mount all available
Material
Titanium Gr9 (TI- 3AL-2.5V),NASA GradeTitanium,   CNC Machined from Ultra-light Ti3Al2.5V Titanium Alloy, normally for Aerospace Industry usage Ti-6Al-4V alloy dropouts
Color
Metal gray; Color can be customized
Type
Girder frame

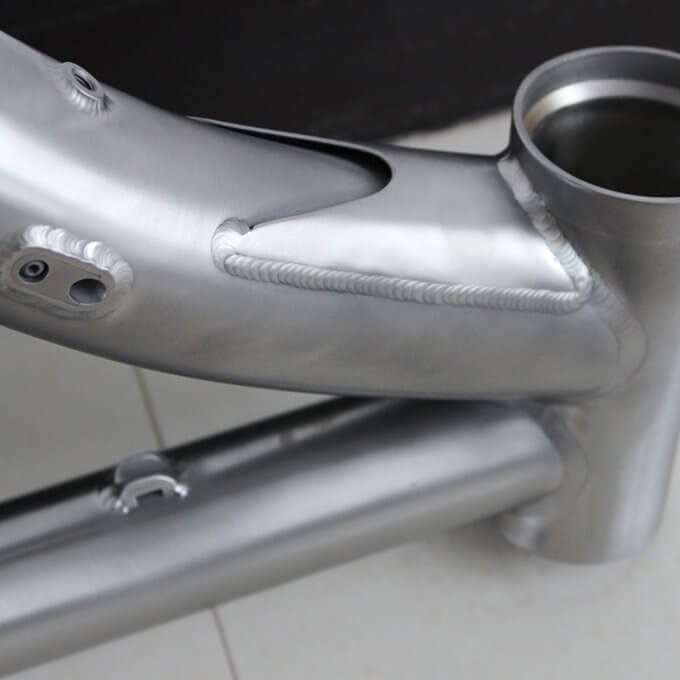

Head Tube
52 / 41.8  mm Tapered
Bottom Bracket

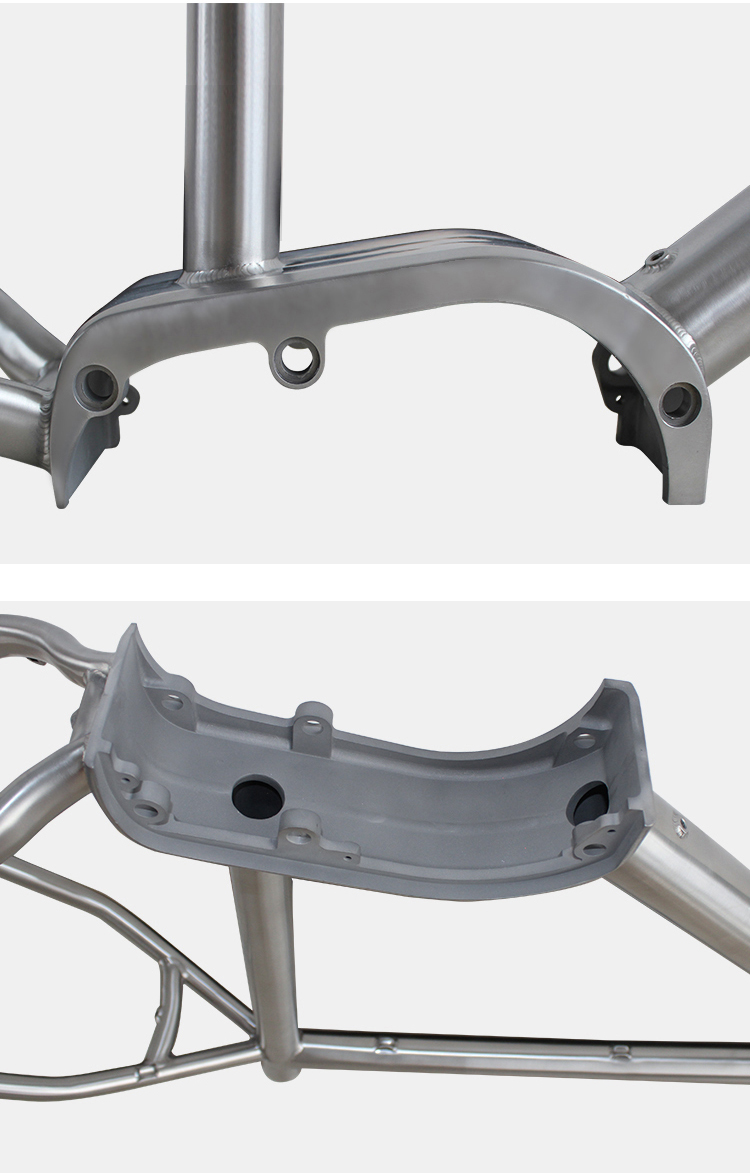

Bafang G510 motor
Hub
135 mm
Seat Tube
31.6 mm
Seat Tube Clamp
34.9 mm

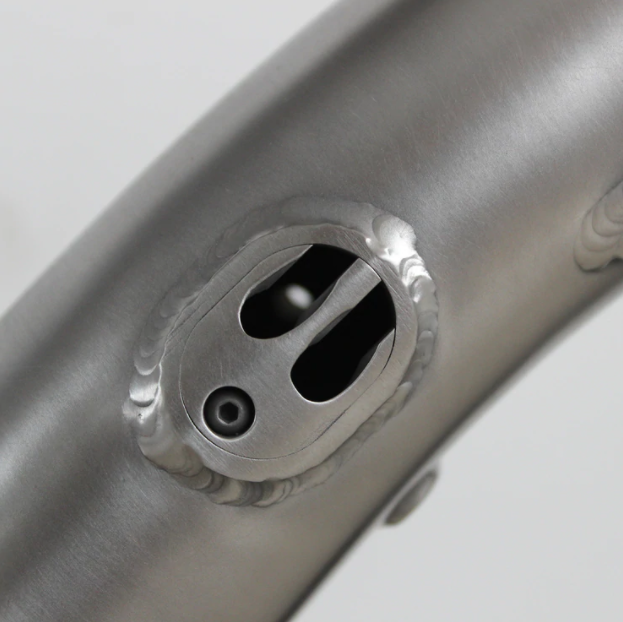

Cable Routing
inner
Tail Hook / Shifting type / Dropout Type
Standard Dropouts for Derailleur cable shifting  /  Sliding Dropouts for Internal Gear Hub Shifting        quick release or Thru axle or Sliding dropouts
Brake type
Disc brake
Motor Option

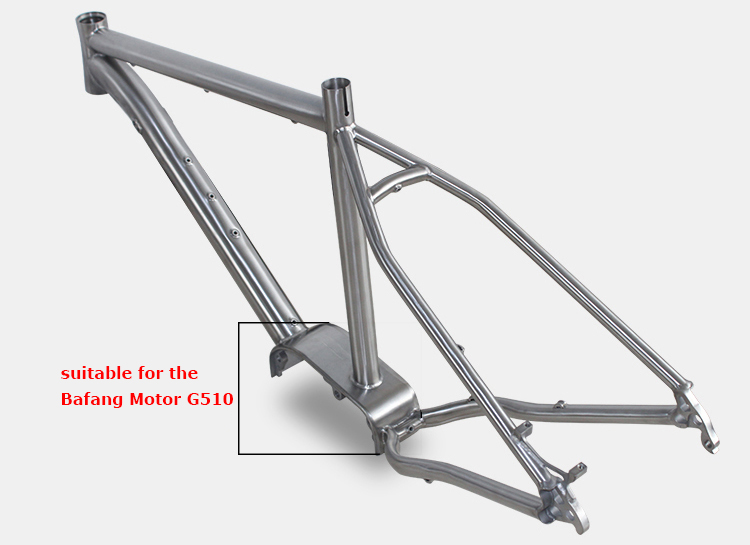

Bafang Ultra Motor G510 motor
Wheel
Available for 27.5 inch, or 29 inch or customized as your needs
Wheel width
2.8 inch or customized as your needs
Foldable
No
Suspension
No
Use
BMX,Mountain Bikes,road bikes
Surface
Polished, Matte, Mirror, Black. Etc
Surface Processing Mode
Sand Blasting
Place of Origin
CN;SHA
Properties
 lightweight, durable, compliant and corrosion resistant
Weight
about 1.5 KG
This frame will offer everything that people need for cycling:
light weight, stiffness, ride quality, smoothness and of course beauty.

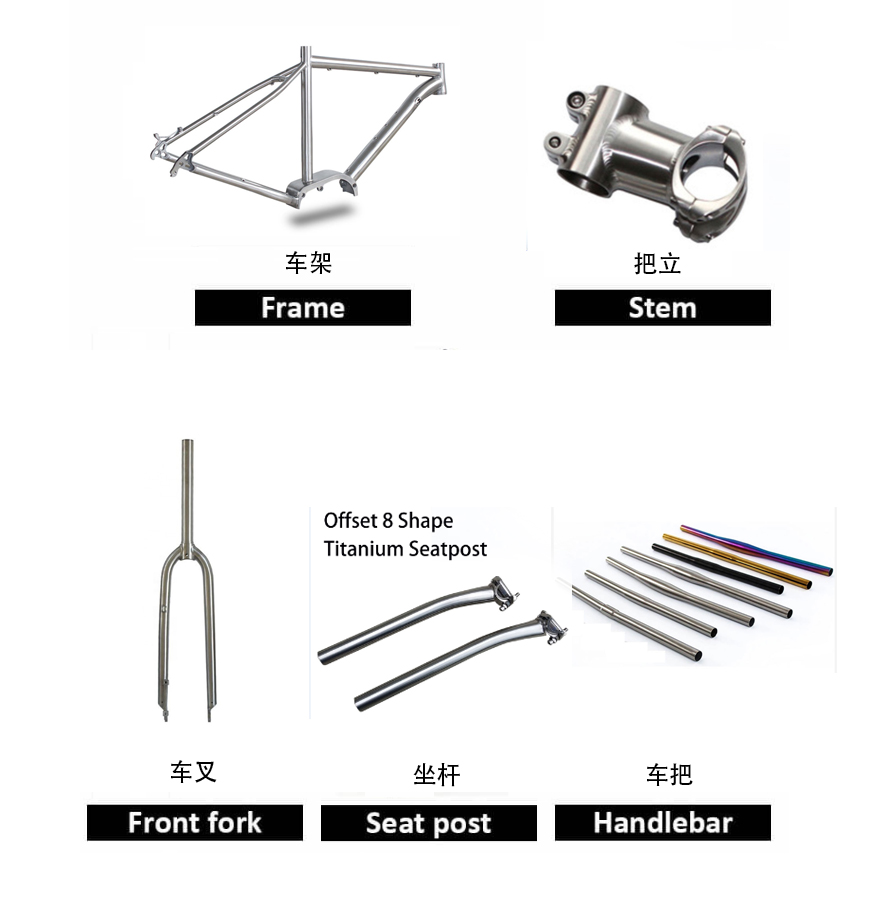

Shaanxi King-whale Information Technology Co., Ltd. is a wholly -owned subsidiary of Shaanxi Electronic Information Group Co., Ltd, which specializes in export of titanium bikes, bike frames, bike accessories & outdoor goods.
We have our own designers, we can customize products for you according to your requirements. We can customize products for you according to your requirements.Our company integrated advantages of Baoji regional titanium industry, formed a professional titanium market and e-commerce sales network to provide titanium products for customers around the world.

We expect to work along with you into a new titanium world with high-quality products, perfect and efficient services.
Titanium makes life better!

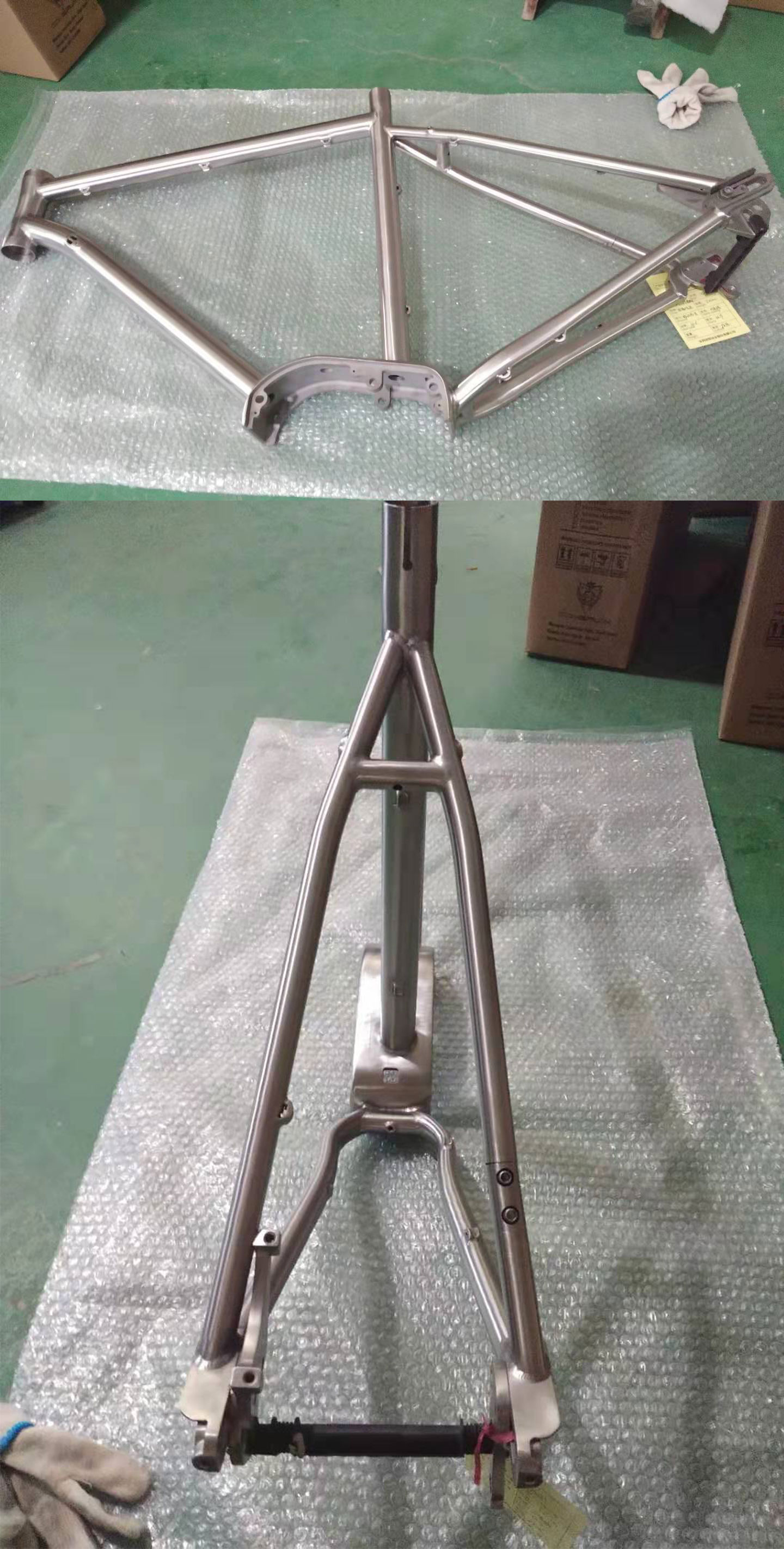

Package : Corrugated paper + woven bag
